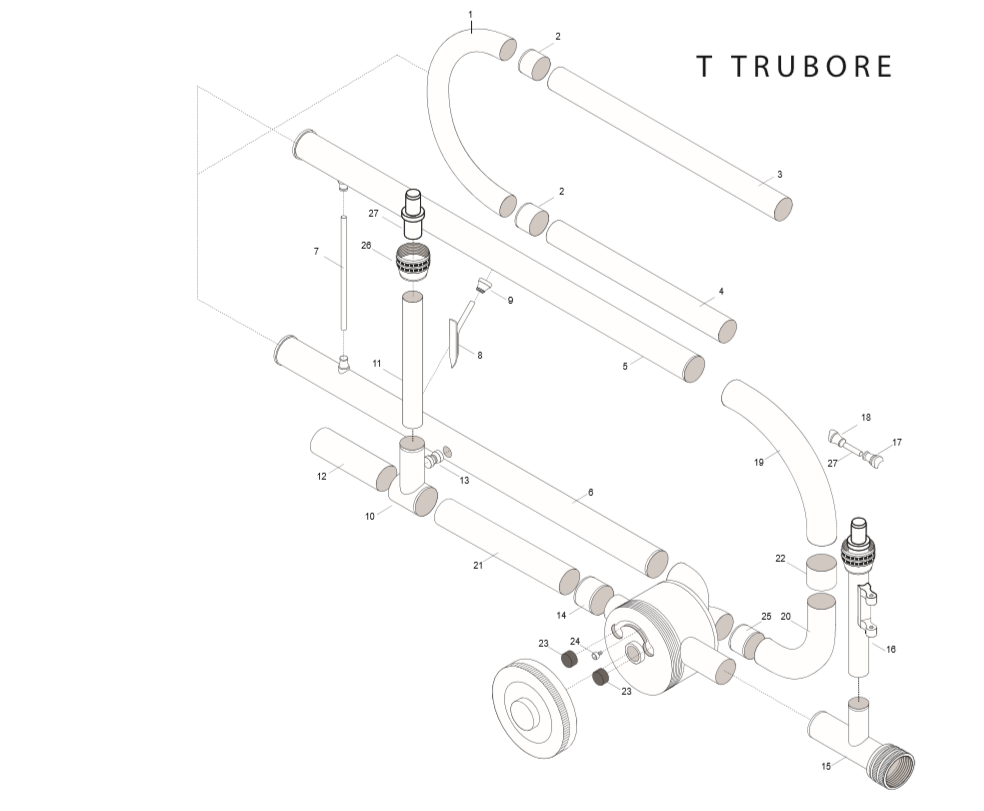

PARTS

1. B002 - Crook TB T Narrow F .562

2. D037 - Ferrule Tenor F Slide

3. C02.06 - Tube Brass T F Inner 9.30

4. C02.05 - Tube Brass T F Inner 9.00

5. AC03.06 - Assy. Tenor F Outer 9.60

6. AC03.05 - Assy. Tenor F Outer 9.30

7. C12.02 - Rod Nickel .188 Brace 3.20

8. AD009 - Assy. Single Diagonal Brace

9. D011 - Socket Small Brace 11/16

10. AD049.02 - Assy. Ferrule Ten Neckpipe

11. C01.01 - Tube Nickel Brace 3.250

12. C04.10 - Tube Brass T NP Top 2.50

13. D024 - Brace NP Criss Cross 5/8 x 1/2

14. D041 - Ferrule 06-12

15. AD031.02 - Assy. Receiver HS Trubore Ten

16. AC01.01.03 - Assy. Ni Brace 3.25 @1.0

17. D013 - Socket Small Brace 27/64

18. D012 - Socket Small Brace 5/8

19. B003 - Crook TB T J .562

20. B004 - Crook TB T Bugle 90 .562

21. B009 - Neckpipe TB T Straight

22. C10.01 - Tube Brass T VS Ferrule 0.50

23. F032 - Bumper Trubore

24. F034 - Screw Trubore Stop

25. D040 - Ferrule 03-12

26. D018 - Nut Large Detach

27. D019 - Stop Large Detach
