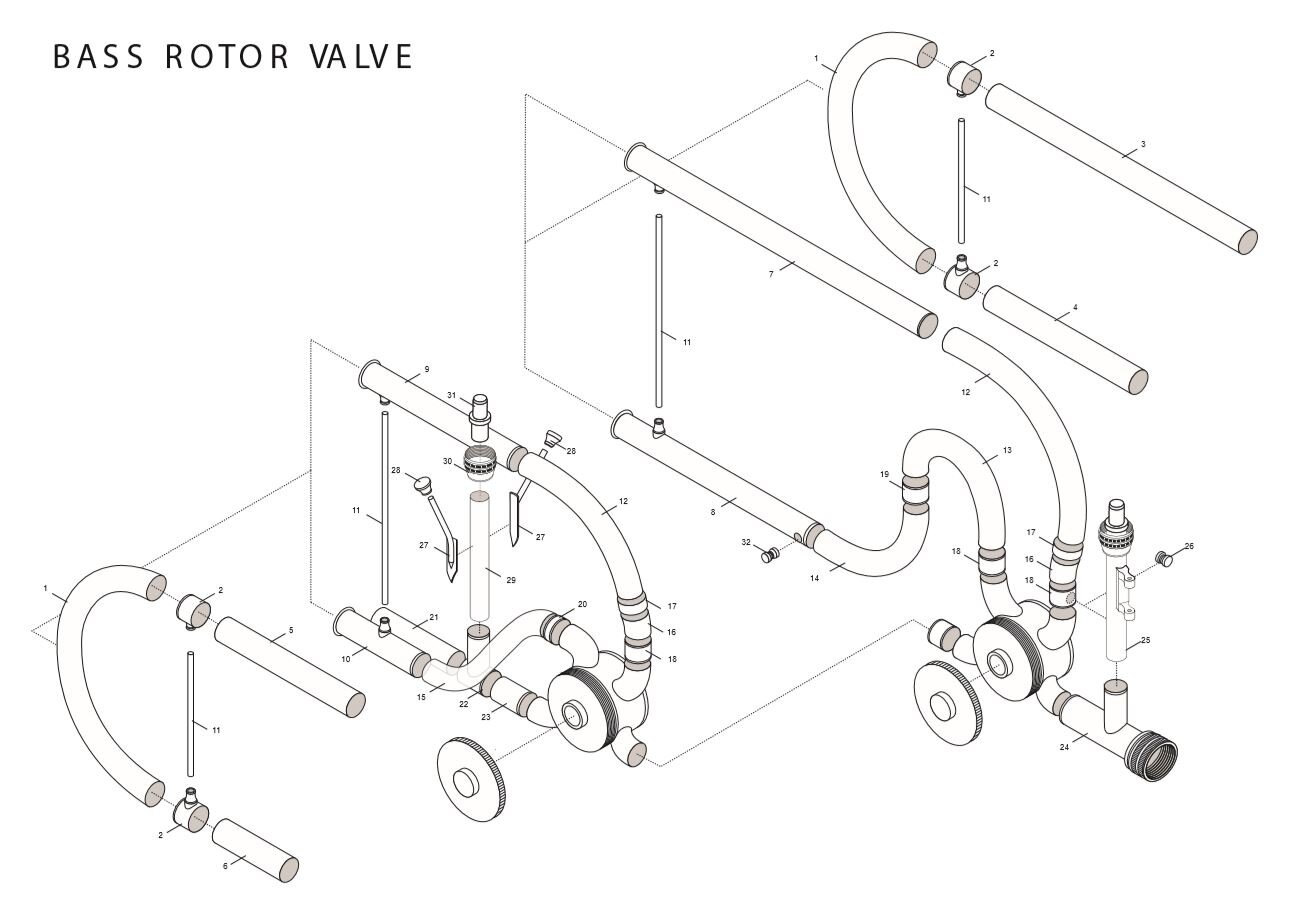

PARTS

  1. B030.01 - Crook TB B F Yellow .594

  2. AD038 - Assy. Ferrule B F Slide

  3. C04.06 - Tube Brass B F Inner 6.45

  4. C04.07 - Tube Brass B F Inner 4.25

  5. C04.09 - Tube Brass B F Inner 3.75

  6. C04.08 - Tube Brass B F Inner 2.75

  7. AC05.06.02 - Assy. Bass F Outer 6.7

  8. AC05.07.02 - Assy. Bass F Outer 4.5

  9. AC05.09 - Assy. Bass F Outer 4.0

  10. AC05.08.01 - Assy. Bass F Outer 3.0

  11. C12.07 - Rod Nickel .188 Brace 4.20

  12. B032.01 - Crook TB B J Yellow .594

  13. B034.01 - Crook TB B Bugle Yellow .594

  14. B033.01 - Crook TB B Bugle 90 Yellow .59

  15. B041.01 - Crook TB B Rotor D Offset Yellow

  16. B036.01 - Crook TB B 65 Yellow .594

  17. D043 - Ferrule B30-45

  18. C11.02 - Tube Brass B VS Ferrule 0.25

  19. D042 - Ferrule B30

  20. D044 - Ferrule B45

  21. C08.03 - Tube Brass B Neckpipe 3.75

  22. AD050 - Assy. Ferrule B Neckpipe

  23. D046 - Ferrule B30-45 .250

  24. AD032.01 - Assy. Receiver HS Rot B

  25. AC01.03.02 - Assy. Ni Brace 3.5 @1.5

  26. D022 - Brace Neckpipe 11/16

  27. AD009 - Assy. Single Diagonal Brace

  28. D011 - Socket Small Brace 11/16

  29. C01.03 - Tube Nickel Brace 3.500

  30. D018 - Nut Large Detach

  31. D019 - Stop Large Detach

  32. D023 - Brace Neckpipe 27/64 x 11/16
