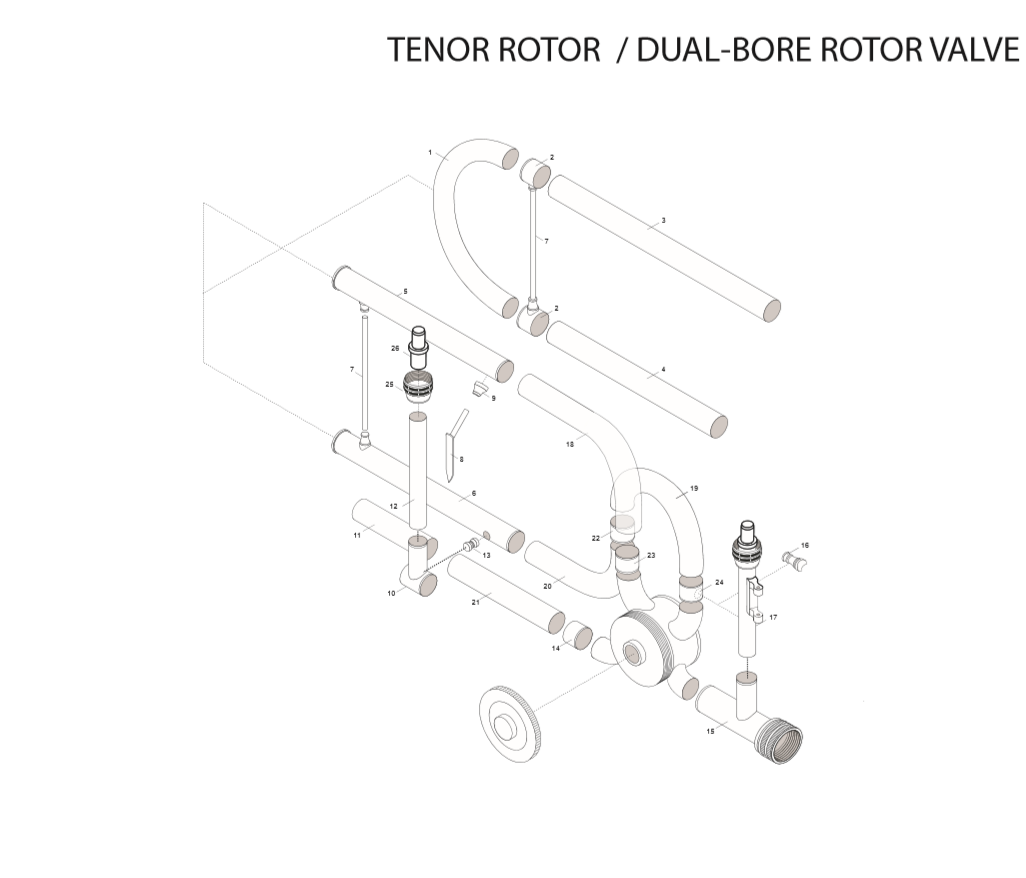

PARTS

  1. B020 - Crook TB T F .550

  2. AD025 - Assy. Ferrule Ten DB F Slide

  3. C07.01 - Tube T DB .565 F Inner 6.00

  4. C06.01 - Tube T DB .550 F Inner 5.50

  5. AC03.03 - Assy. Tenor F Outer 6.25

  6. AC03.04 - Assy. Tenor F Outer 5.75

  7. C12.05 - Rod Nickel .188 Brace 3.80

  8. AD009 - Assy. Single Diagonal Brace

  9. D011 - Socket Small Brace 11/16

  10. AD049.01 - Assy. Ferrule Ten Neckpipe

  11. C01.01 - Tube Nickel Brace 3.250

  12. C04.10 - Tube Brass T NP Top 2.50

  13. D022 - Brace Neckpipe 11/16

  14. D047 - Ferrule 98-20

  15. AD033 - Assy. Receiver HS Trad Rot Tenor

  16. D013 - Socket Small Brace 27/64

  17. AC09.01 - Assy. Brass Brace 3.25 @1.1

  18. B021 - Crook TB T J .565

  19. B023 - Crook TB T Bugle .550

  20. B022 - Crook TB T Bugle 90 .550

  21. B009 - Neckpipe TB T Straight

  22. D039 - Ferrule 03-06

  23. D059 - Ferrule Tenor DB

  24. D048 - Ferrule 10-20

  25. D018 - Nut Large Detach

  26. D019 - Stop Large Detach
